Summary
The WooPower W63 is our first 1S charger with six independent ports, allowing simultaneous charging, discharging, and storage without interference.
With support for up to 3.0A charging per channel, it ensures longer flight times, while each channel can discharge at 0.5A. Multiple safety features provide peace of mind during use.
The IPS display screen offers clear, vibrant visuals, and the intuitive button design makes operation easy. Its compact, lightweight build of 160g makes it highly portable.
Feature
- Six independent ports for charging, discharging, and storage without interference.
- All six ports support up to 3A charging simultaneously, providing longer flight times.
- Each channel can discharge up to 0.5A, making battery storage hassle-free.
- XT60 (LiPo 3-6S battery) with 7-26V input.
- Type-C fast charging (supports PD3.0 and newer chargers/power banks, PD3.0 recommended).
- Compatible with PH2.0 and BT2.0 connectors (works with A30).
- The 1.54-inch IPS display provides clear, easy-to-read info and simple controls for a better user experience.
- Compact and lightweight at just 160g, perfect for on-the-go use.

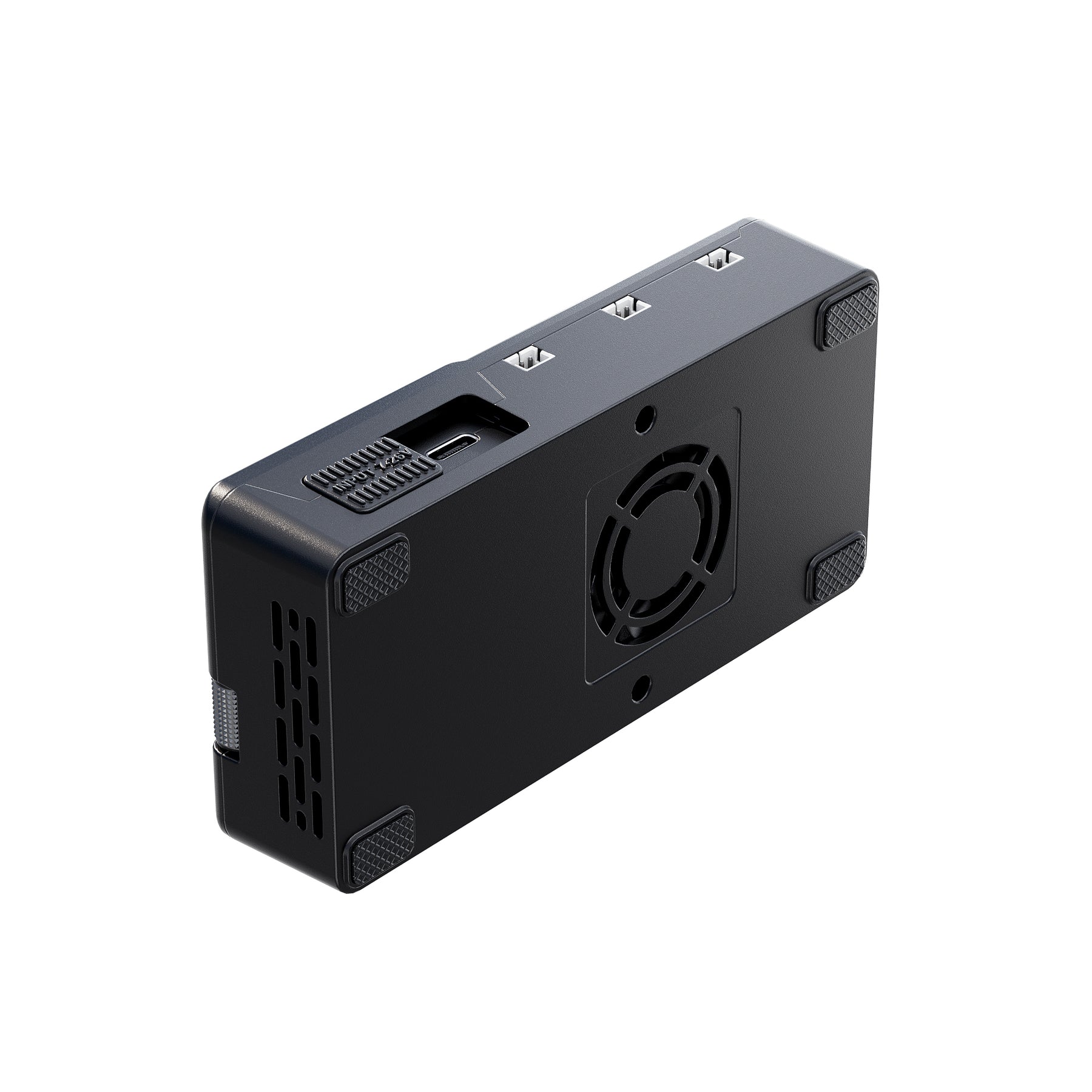

- A large heat sink and cooling fan ensure efficient heat dissipation and extend lifespan.
- Supports LiPo, LiHV, and LiFe 1S batteries for easy switching. Wide voltage range, compatible with other batteries.
- Five safety features, including temperature, time, capacity, and short-circuit protection, ensure performance and safety.
Specification
- Dimension: 125 x 61 x 28mm
- Weight: 160g
- Output Connector: PH2.0/BT2.0（compatible with A30）
- Input Connector: XT60/Type-C（PD3.0）
- Screen Size: 1.54-inch IPS display screen 240*240 resolution
- Min Input Power: 100W (at max charger load)
- Max Output Power: 78W
- Max Charging Current: 3.0A x 6
- Max Discharging Current: 0.5Ax 6
- Input Voltage Range: 7-26V
- Operating Temperature: 0°C-75°C
- Battery Types: LiPo / LiHV / LiFe 1S
- Functions: Charge / Discharge / Storage
Instructions
- Never leave the charger unattended. Stop using it immediately if any issues arise and consult the manual or technical support.
- Keep the charger away from dust, sand, moisture, rain, high temperatures, direct sunlight, and heavy vibrations.
- Ensure the power supply voltage is within the 7-26V range. Do not connect both XT60 and Type-C connectors simultaneously.
- Avoid using BT2.0 and PH2.0 on the same port for charging or discharging.
- Remove all batteries from the charger before restarting.
- Reinserting the Type-C connector too soon may prevent the charger from starting. Wait about 8 seconds before plugging it back in.
- Place the charger on a heat-resistant, non-flammable, and insulated surface. Avoid using it on car seats, carpets, cardboard boxes, or similar surfaces. Keep liquids and metal particles
- away from the input ports and vents, and ensure flammable or explosive materials are not nearby.
- Do not use the charger in high-temperature environments, and keep the bottom ventilation clear to ensure proper airflow.
- Ensure you understand the battery’s specs and set the charger parameters correctly to avoid damage or dangerous situations like fires or explosions.
- Remove the battery promptly after charging or discharging.
For any questions, contact our support team immediately to prevent potential damage.
Include
W63 Charger x1
Type-C to C Charging Cable x1
User Manual x1
Charger Debugging Tutorial
